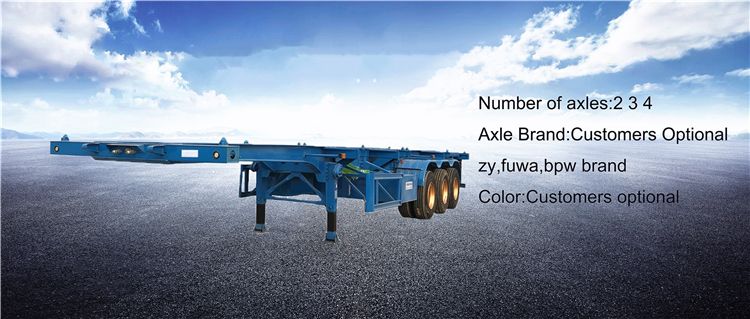

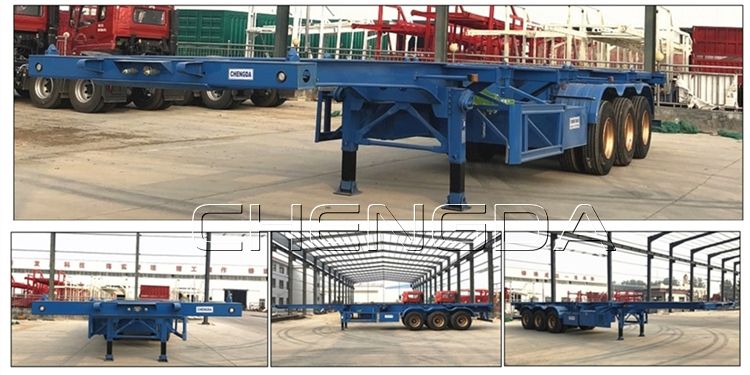

CHENGDA TRAILER supply container skeletal trailers with reliability and competitive price. As a 15 years manufacturer, ANSTER have provided many kinds of trailers for military and governments, we have much more advantages on the container chassis trailer cost and quality control.
Contact Us Now & Get Detailed Drawing!! Just tell us your requirements, we will provide you high quality trailers!
| Dimension and Weight | ||
| Overall Dimension（mm） | 12500x2500x1650mm | |
| Wheelbase | 7,500mm+1,310mm+1,310mm | |
| Payload | 40,000kg | |
| Tare weight | 6,500kg | |
| G.V.W.R. | 46,500kg | |
| Function | transport 1x20ft, 2x20ft, 1x40ft container | |
| Running System | ||
| Main beam | height of the beam is 500mm, upper plate is 14mm, down plat is 16mm, middle plate is 8mm. | |
| Side beam | 16# | |

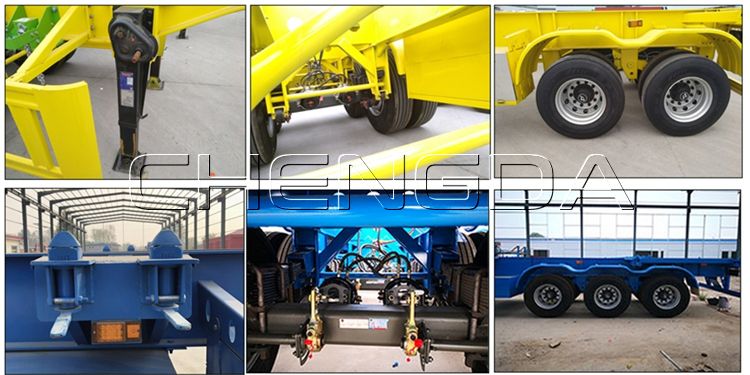

| Axle | 3x13Ton ZY brand | |
| Axle Number | Three | |
| Tire | 12R22.5, 12 pcs. Taitong brand | |
| Rim | 9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs | |
| Suspension system | Mechanical Suspension | |
| Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) | |
| Electrical System | Chinese standard 24V lighting system | |
| Brake system | Dual line pneumatic brake, no ABS | |
| Brake air chamber | 6 units T30/30 Double brake chambers | |
| Emergency relay valve | Standard | |
| Diamond plate | 4mm | |
| traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster | |
| Landing Gear | Yahua brand 28ton external two speed telescopic manual operation 2,500mm behind the kingpin location | |
| Accessories | ||
| Tool box | 1pcs, One crank and one shaft head wrench | |
| Mud guard | Steel mud guard and front mudguard | |
| Spare wheel carriers | 2 pcs | |
| Bumper | Rear bumper with adjustable height | |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) | |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. | ||
| One set 6-core electric cable protected by PVC conduit on main frame | ||
| Paint | Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. Waxed | |
| Packing | Nude, Polish with wax before shipping | |
