| Overall Dimensions(L*W*H) | (13000-14700)*2500*1600 |
| Function | transport container and bulk cargo |

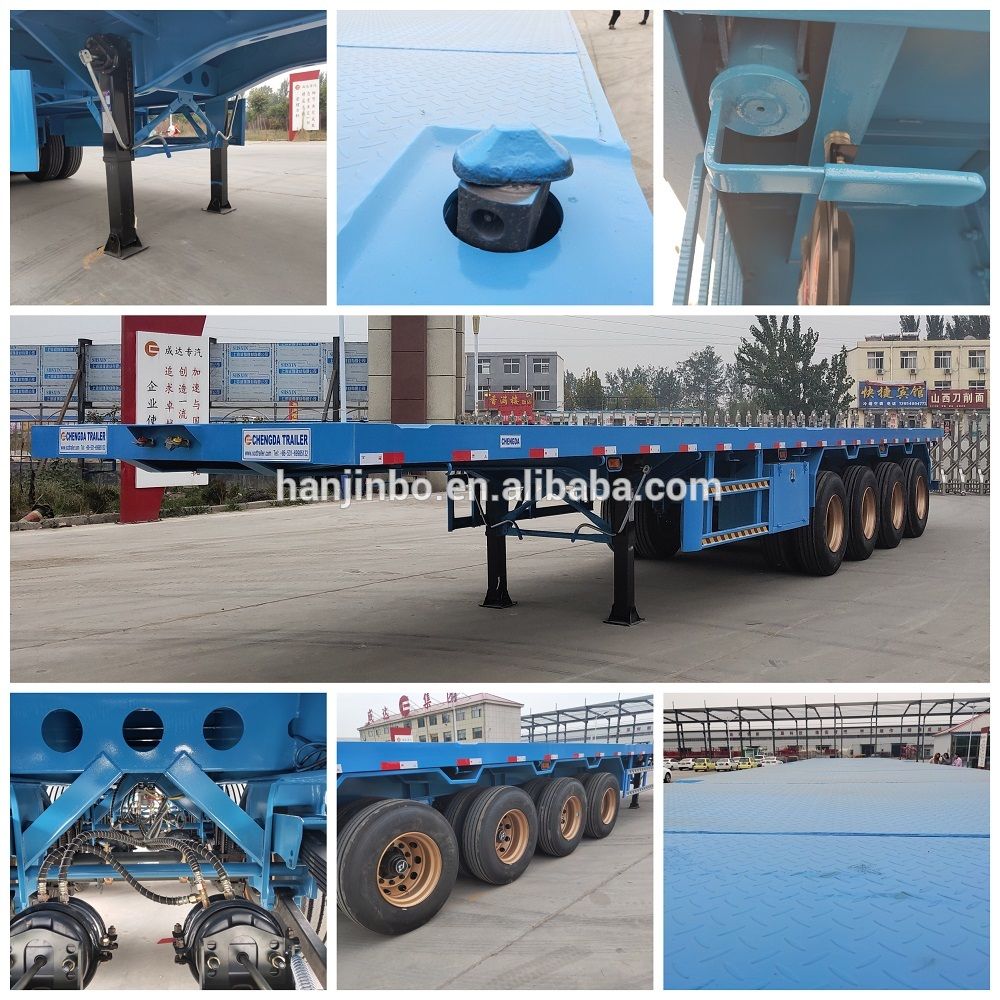

| Model | Goose neck type |
| Loading capacity | 60000 |
| Main Beam | The height of the beam is 500 mm, upper plate is14mm, down plate is 16mm, middle plate is 8 mm. |
| Axle | 4 x 13Ton,fuwa/zy brand |
| King pin | 2"(50#) and 3.5"(90#) |
| Support legs | 28Ton (Heavy duty Jost landing legs) |
| Tire | 12R22.5, 16 pcs |
| Platform plate | 3mm-4mm-5mm (metal deck) |
