 3 axles excavator trailer

Chengda 3 axles excavator trailer are widely used in heavy machines transportation.

Titan Excavator low bed semi trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts HG60 High Strength Steel Material. we use it to make sure that our Chengda Excavator Trailers is with a long service life and to avoid unnecessary maintenance.

Advantage:

1. Main beam adopts HG high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam to have the deformation.

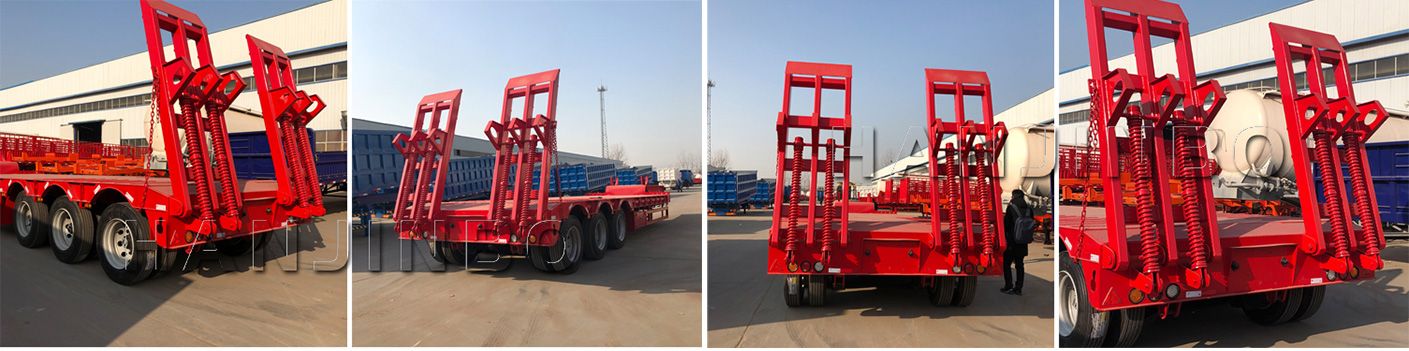

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.










Dimension and Weight
Overall Dimension(mm)13000x3000x1650mm
Working Deck Dimension(mm)9000x3000x1350mm
Platform thickness(mm)4mm
Main Beam“H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase7,650mm+1,310mm+1,310mm
Payload60,000kg
Tare weight9,000kg
G.V.W.R.69,000kg
Function To transport bulk goods or heavy equipment like loader or excavator

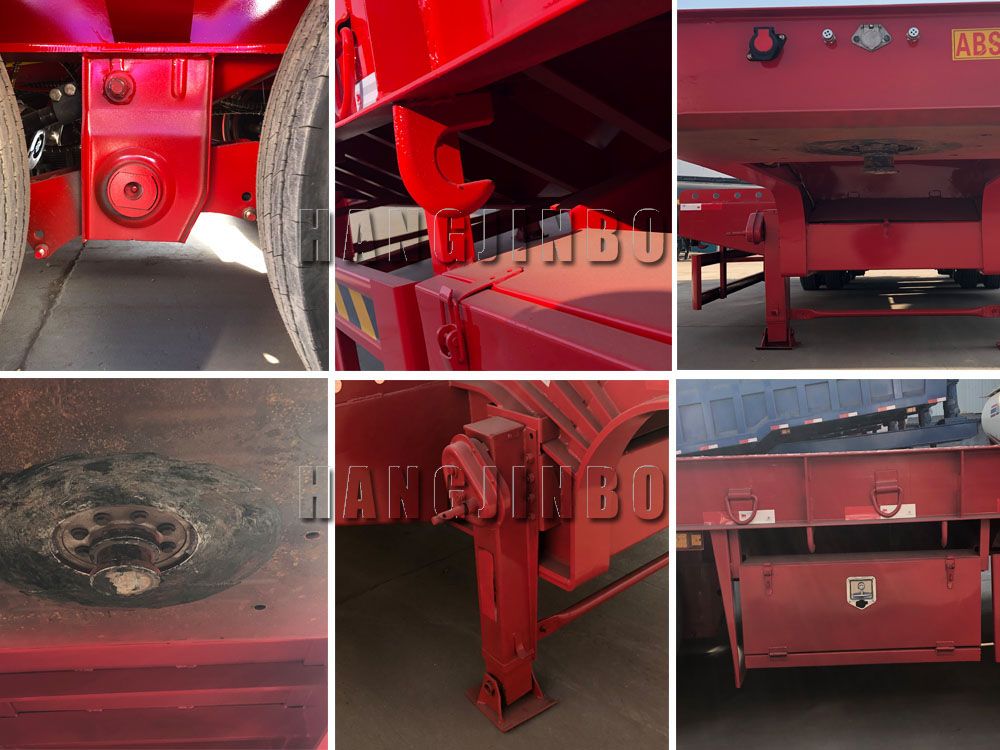

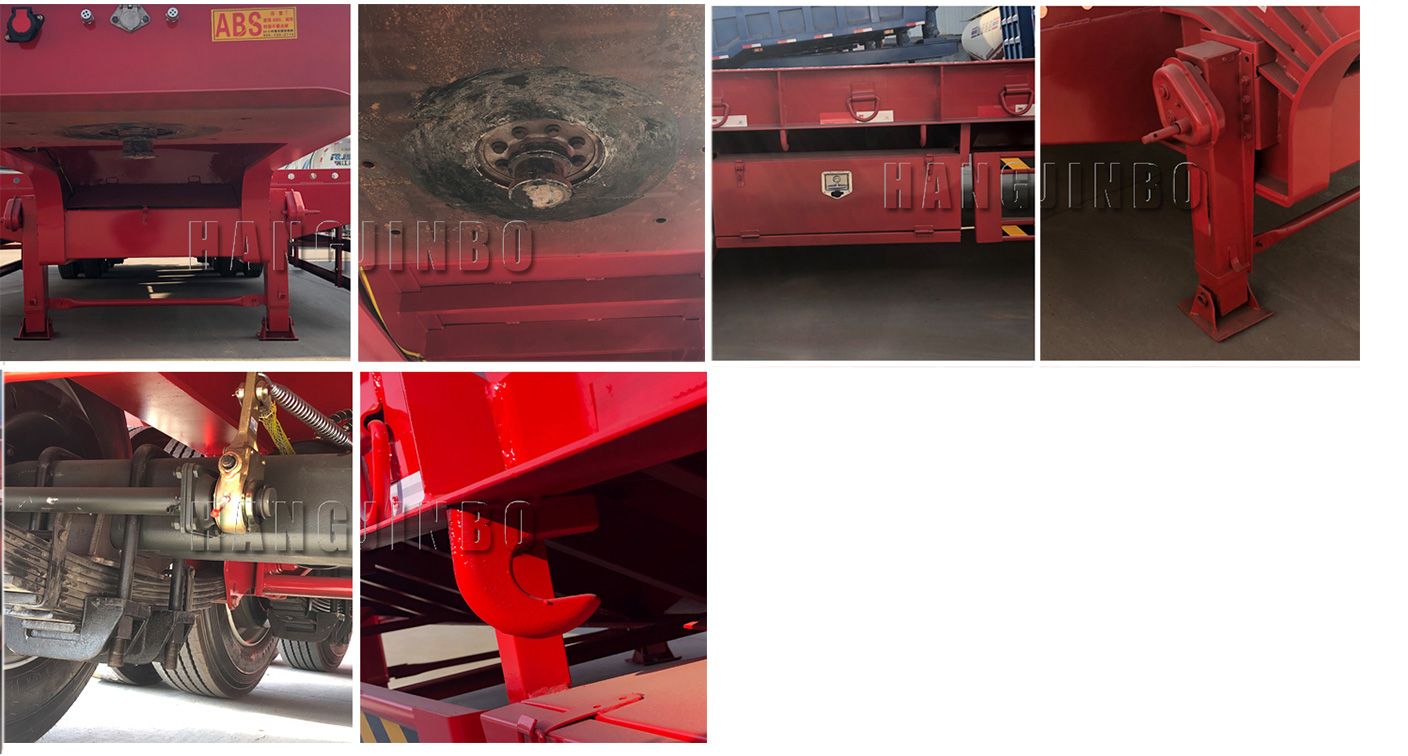

Running System
Axle13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle Number  Three
Tire1100R20, 12 pcs  Taitong brand
Rim8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension systemCommon Mechanical Suspension
Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical SystemChinese standard 24V lighting system
Brake system:Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber6 units T30/30 spring brake chambers
Emergency relay valveWabco relay valve
traction/King Pin2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear  Zhenhua brand 28ton external two speed telescopic manual operation
2,500mm behind the kingpin location
Accessories:
Tool box1pcs, One crank and one shaft head wrench
RampHeavy duty trailer ramp
Spare wheel carriers2 pcs
bumperRear bumper
Electrical system1. Voltage: 24v   2. Receptacle: 7 ways (7 wire harness)
Tail lamp with turn signal, brake light & reflector, side lamp etc.
One set 6-core electric cable protected by PVC conduit on main frame
PaintShot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed
PackingNude, Polish with wax before shipping
